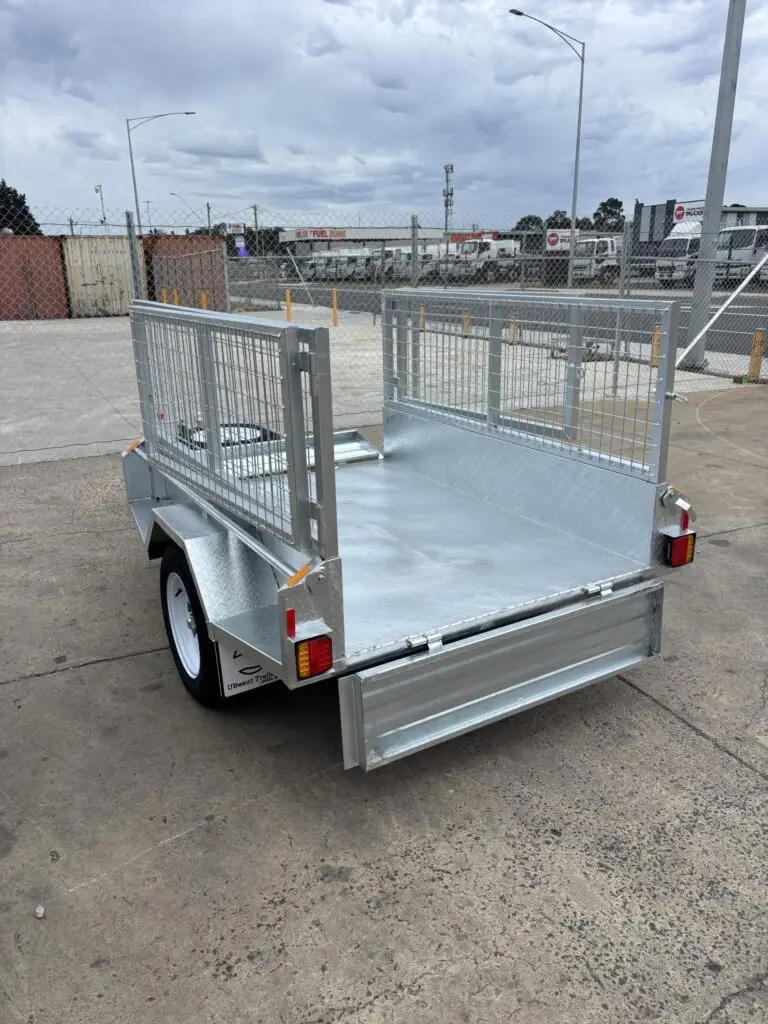

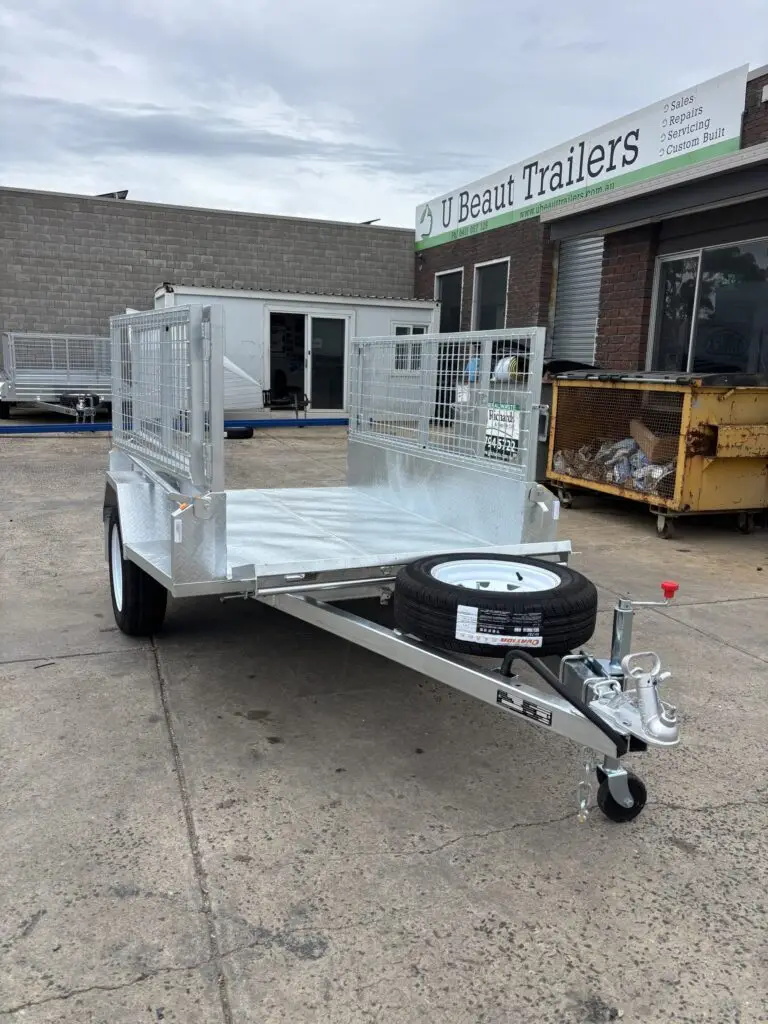

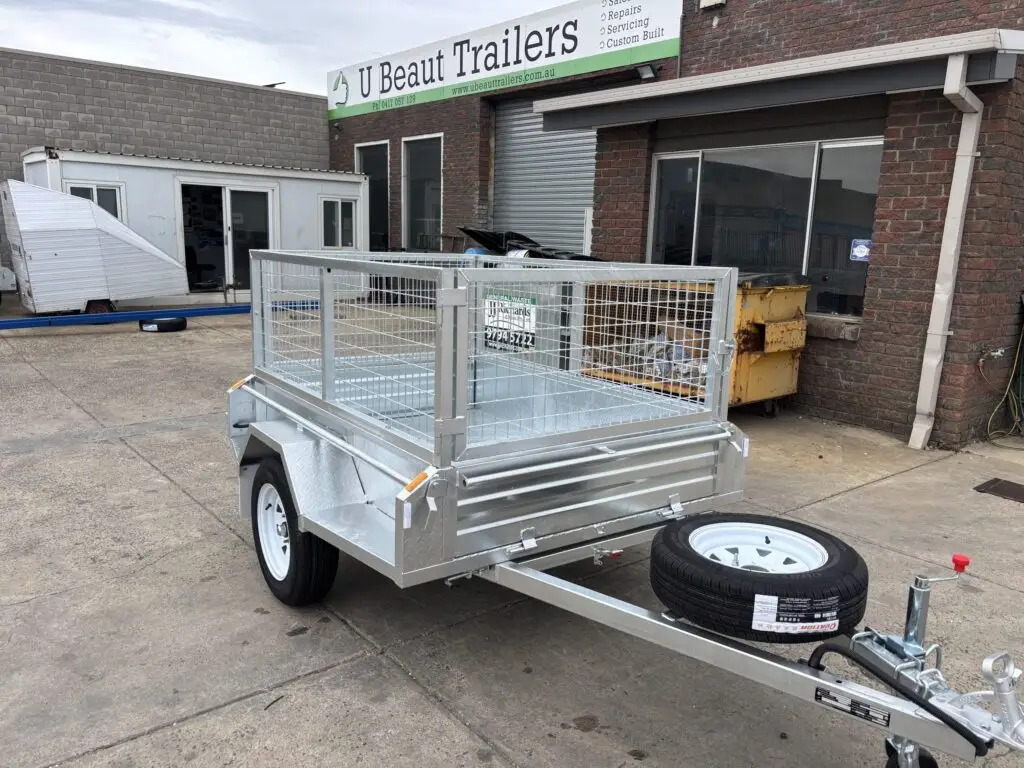

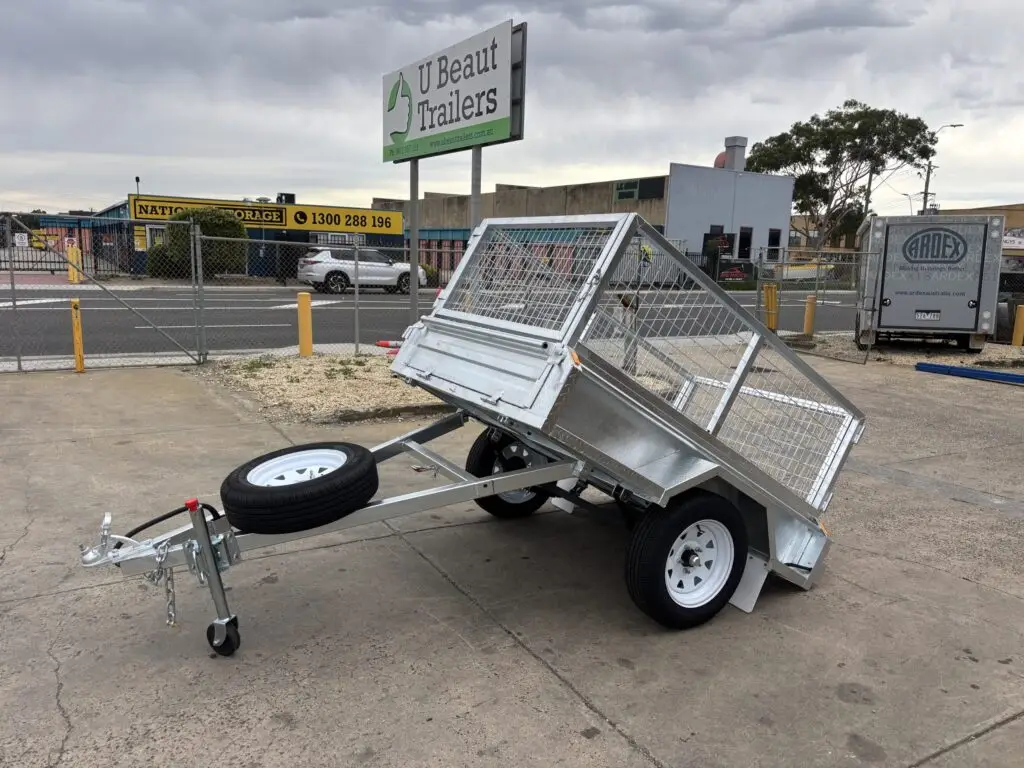

6×4 Single Axle Box Trailer
The standard workhorse
$4,500
Best ever trailer!
Specifications
| Overall length (mm) | 12000 |
|---|---|
| Overall width (mm) | 3400 |
| Overall height (mm) | 1200 |
| Wheelbase (mm) | 1234 |
| Deck length (mm) | 1345 |
| Deck width (mm) | 1500 |
| Side height (mm) | 1100 |
| Headboard height (mm) | 450 |
| Tailgate height (mm) | 450 |
| Tare / empty weight (kg) | 400 |
| ATM — Aggregate Trailer Mass (kg) | 1200 |
| GTM — Gross Trailer Mass (kg) | 1200 |
| Ball weight (kg) | 125 |
| Payload capacity (kg) | 1000 |
| Chassis material | Galvanised RHS |
| Finish | Hot-dip galvanised |
| Floor type | Checker plate |
| Axle count | 1 |
| Axle rating (kg, per axle) | 350 |
| Suspension | Leaf spring |
| Brakes | Unbraked |
| Coupling type | 50mm ball |
| Wiring | 7-pin flat |
Standard features
- Cage (mesh / steel)
- Drop-down sides
- LED lighting (standard)
- Removable sides
- Slide-out rear ramps
- Spare wheel
- Tie-down rails / rope rails
